Aqua Duo 9X

UNDERWATER THRU-HULL LIGHT

Power Above Its Class. Performance Below the Surface.

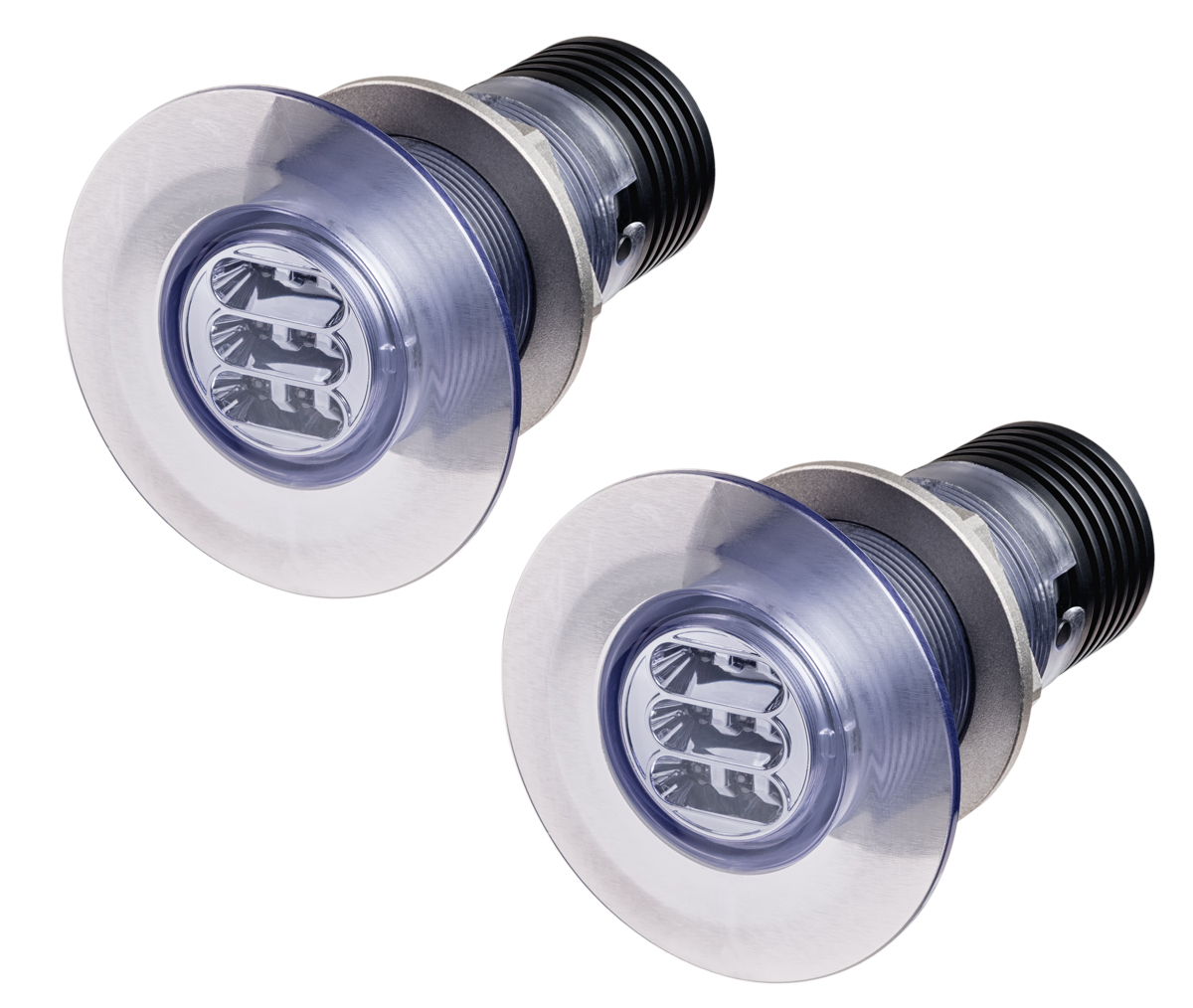

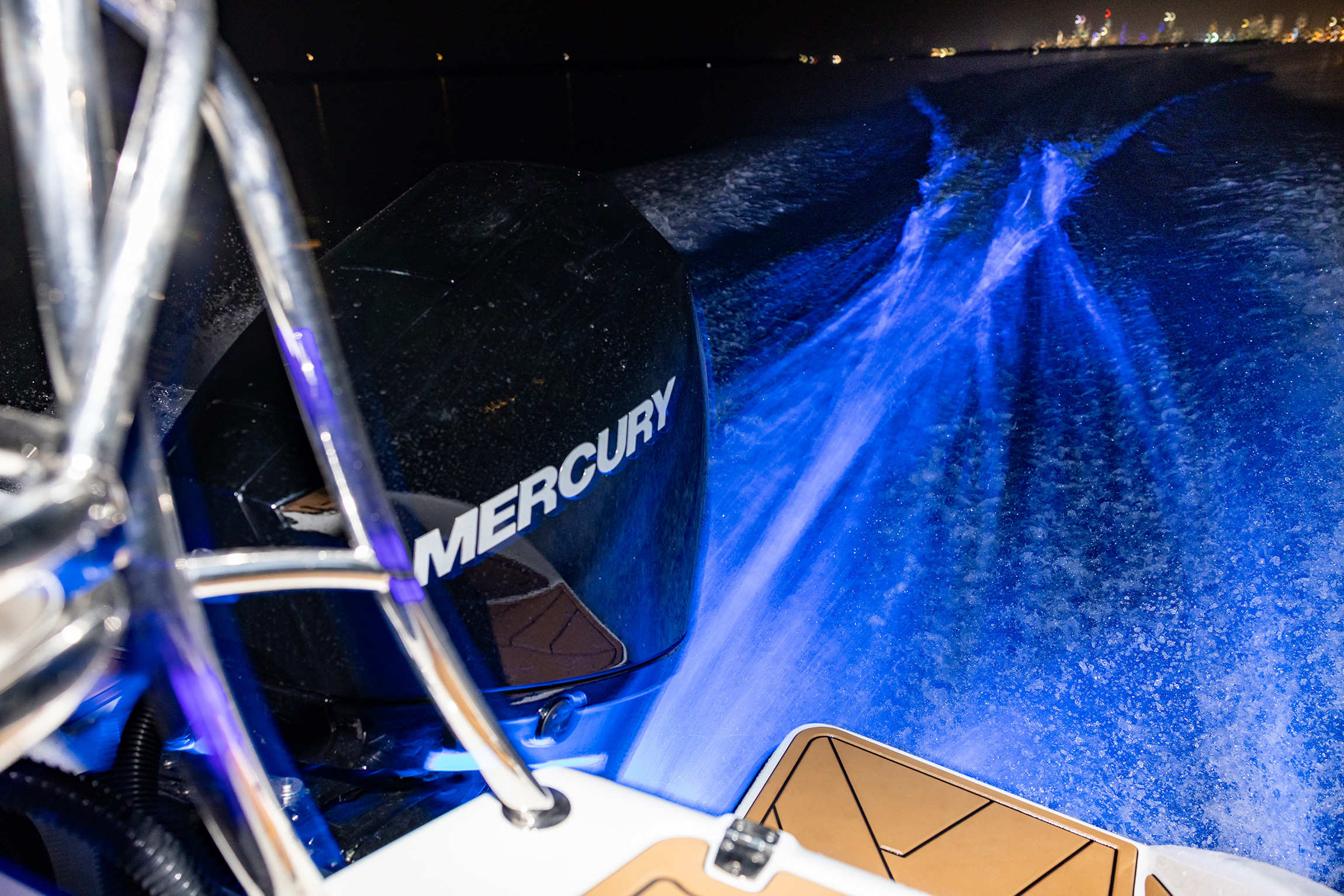

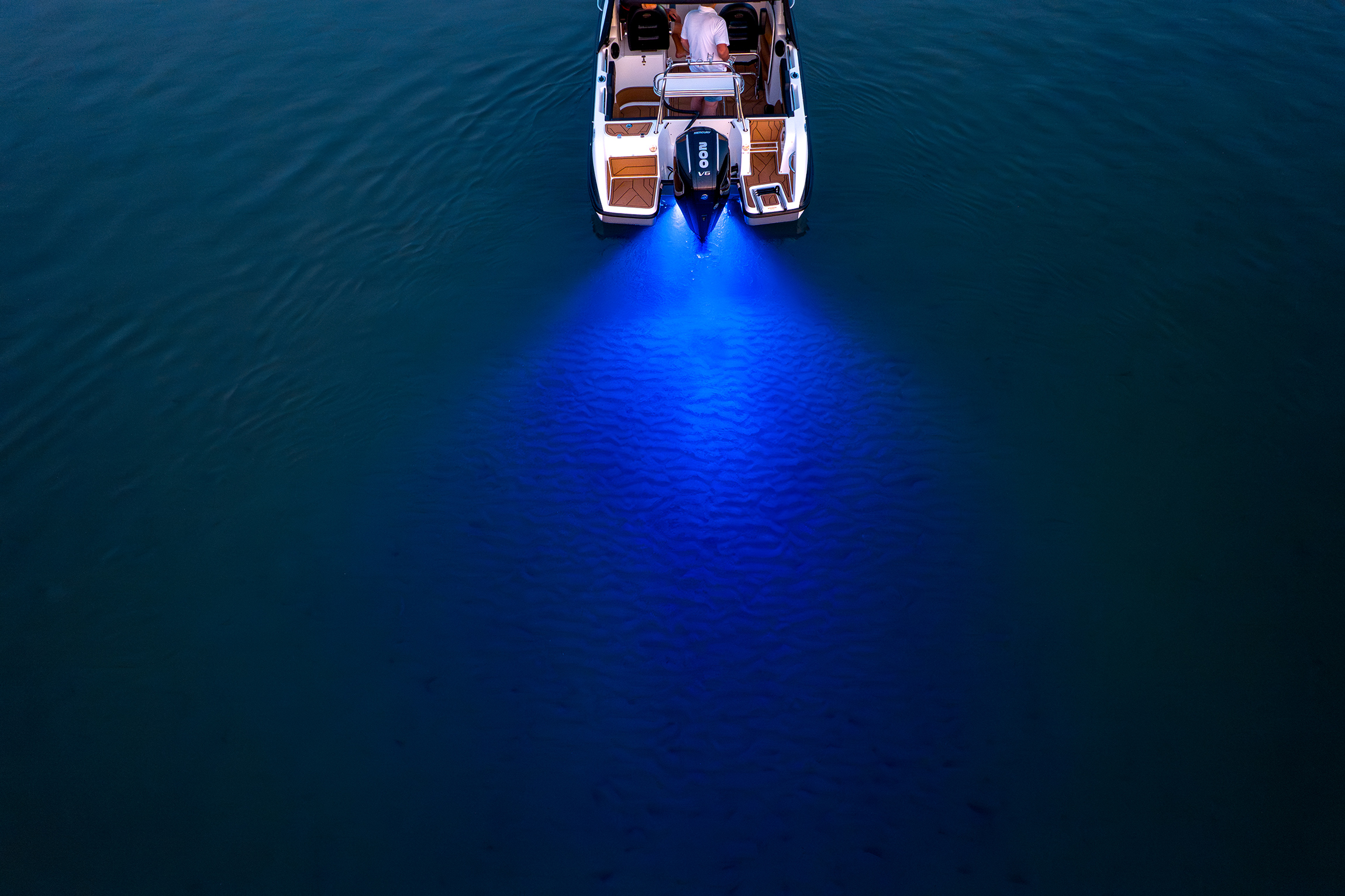

The Aqua Duo 9X is a factory-paired, high-performance underwater LED lighting system designed to dominate in clarity, beam width, and output intensity. Each unit packs 9 powerful LEDs, delivering a wide, penetrating flood of light beneath the waterline. Available in Ultra Blue or Brilliant White, the 9X sets the scene with vivid ambience and a powerful glow.

With a dedicated external driver, the system keeps critical electronics inside the vessel dry and protected. Built around Aqualuma’s proven 60mm polymer housing, the Aqua Duo 9X is fully serviceable, upgradeable, and sold exclusively as a pair.

AquaX Duo 9 - Spec Sheet

SPECIFICATIONS

GEN 4 LED Technology:	Advanced lighting performance.
Warranty:	3 years on internals, 10 years on housing.
Housing:	Patented, high-tech, chemically resistant polymer.
Serviceability:	Fully serviceable and upgradeable from inside the vessel.
Voltage:	Compatible with 12 or 24 Volt DC systems.
Current Draw:	2 amps @ 12V (2x lights) or 1 amp @ 24V (2x lights)

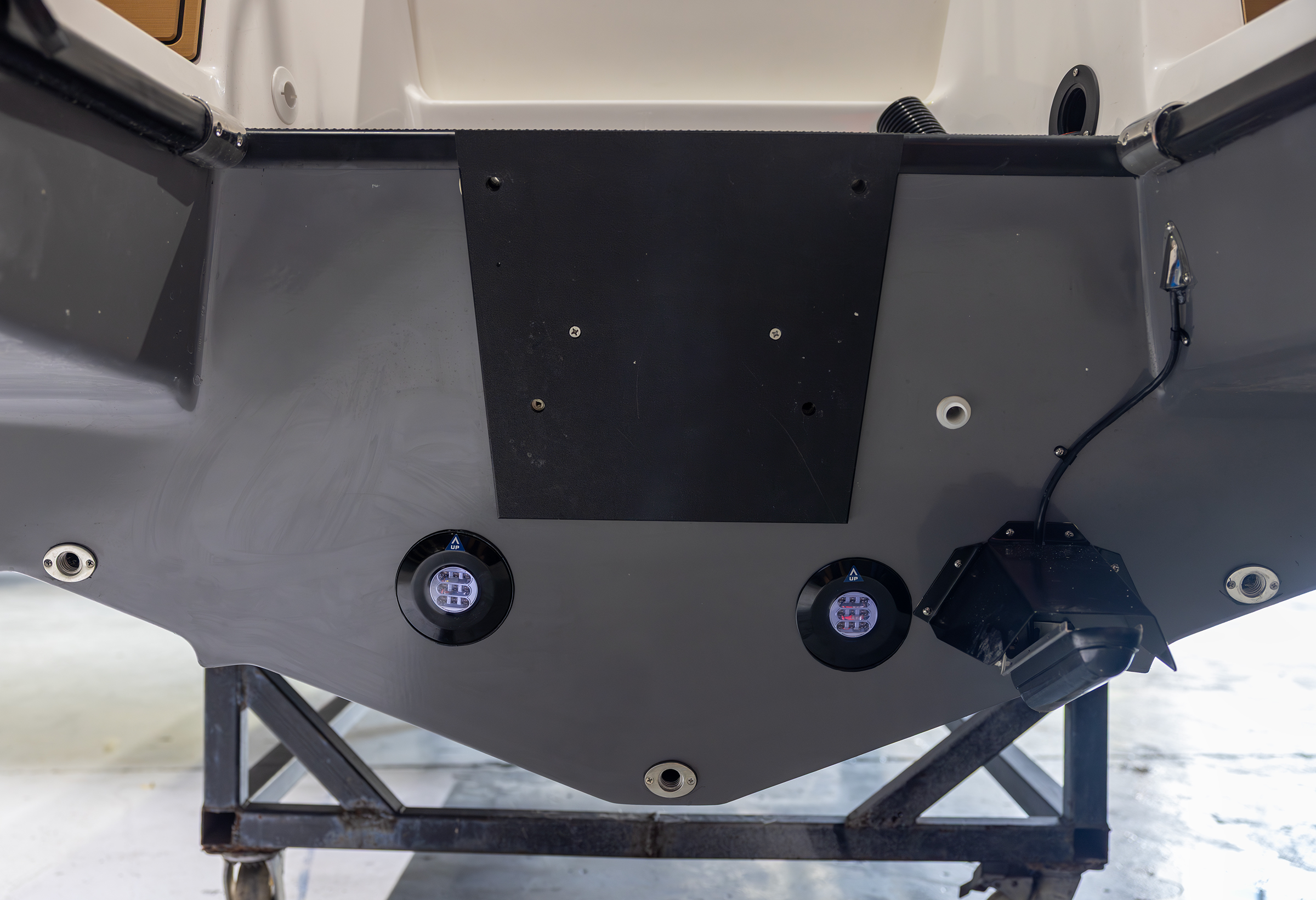

Installation:	Easy, low-cost 2-wire installation with no bonding to anodes required.
Compliance:	Meets global EMI standards.
Beam:	Delivers a deep-penetrating and wide flat beam of light.
Lens:	No seals to deteriorate or leak.
Cabling:	Includes 6 metres (19 feet) of tinned marine-grade cable from each light and 1 metre from control box.
Fitting:	60mm (2 3/8”) thru-hull fitting.
Colour Options:	Blue – White

Find the right Aqualuma underwater light for your vessel.

Swipe to compare →

Specification	6 Series	Aqua Duo 9X	12 Series	18 Series	18 Tri Series
Recommended boat size	Up to 45 ft 13 m	To confirm	Up to 60 ft 18 m	Up to 100 ft 30 m	Up to 100 ft 30 m
Recommended transom spacing	3–6 ft 1–2 m	To confirm	3–6 ft 1–2 m	3–6 ft 1–2 m	3–6 ft 1–2 m
Recommended transom quantity	3–5	To confirm	4–6	6–8	6–8
Recommended installation depth	8–10 in 200–250 mm	To confirm	8–10 in 200–250 mm	8–10 in 200–250 mm	8–10 in 200–250 mm
Current draw	1A @ 12V 0.5A @ 24V	2A @ 12V 1A @ 24V, per pair	2A @ 12V 1A @ 24V	2.6A @ 12V 1.3A @ 24V	1.3–2.6A @ 12V 0.65–1.3A @ 24V
Fixture lumens	Up to 4,900 lm	To confirm	Up to 9,990 lm	Up to 14,100 lm	Up to 9,525 lm
Colour options	Blue · White	Blue · White	Blue · Cyan · White	Blue · Cyan · White	Blue · White
Compliance	RINA
Warranty	10-year housing \| 3-year internals
